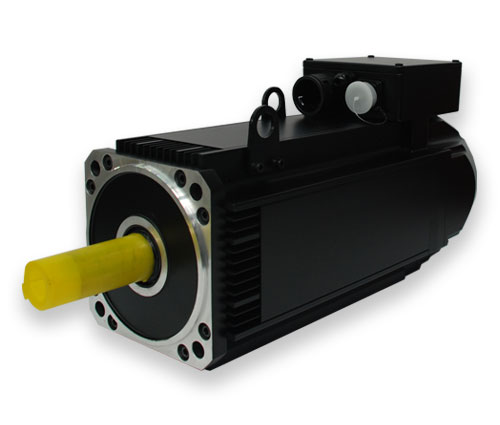

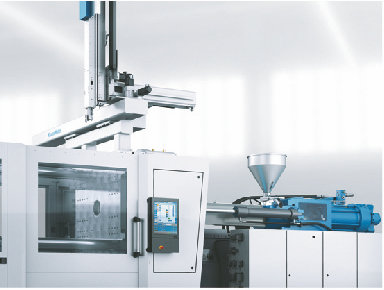

NAS G系列交流伺服驅動系統是星辰科技為伺服節能型注塑機專門開發的的高性能交流伺服系統，該系列產品具有響應快速、控制精確等特點，能夠完美地實現伺服系統對注塑機油泵的控制。

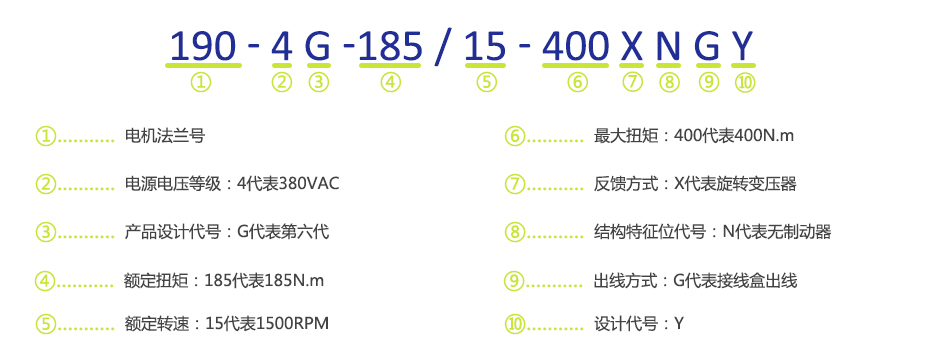

1.命名規則
2.技術規范
|
絕緣耐壓等級 |
F級 |
|
保護型式 |
IP54，強制風冷 |
|
振動等級 |
振動加速度5g （即:49m/s2） |
|
安裝方式 |
法蘭安裝 |
|
使用環境溫度 |
-10℃～+40℃ |
|
保存環境溫度 |
-20℃～+60℃ |
|
濕熱 |
95%RH以下(不凝露) |
|
標準高度 |
海拔1000m以下（1000m以上請降額使用） |
|
反饋元件 |
旋轉變壓器 |
|
電機型號 |
額定扭矩N.m |
額定電流 A |
最大電流 A |
額定轉速 rpm |
最高轉速 rpm |
轉動慣量 kg.cm2 |
力矩常數N.m/A |
電機 重量 kg |
推薦配套 驅動器型號 |
|
140-4G20/17-54XNGY-S |
20 |
6.4 |
19.5 |
1700 |
2500 |
17.2 |
3.2 |
14.1 |
NAS4E13/23XS |
|
140-4G26/17-75XNGY-S |
26 |
8.2 |
26.2 |
1700 |
2500 |
25.2 |
3.2 |
17.8 |
NAS4E13/23XS |
|
140-4G36/17-105XNGY-S |
36 |
11.5 |
36.2 |
1700 |
2500 |
36.2 |
3.1 |
22.9 |
NAS4E17/31XS |
|
140-4G18/20-54XNGY-S |
18 |
6.9 |
23.6 |
2000 |
2500 |
17.2 |
2.6 |
14.1 |
NAS4E13/23XS |
|
140-4G24/20-75XNGY-S |
24 |
9.5 |
31.2 |
2000 |
2500 |
25.2 |
2.5 |
17.8 |
NAS4E17/31XS |
|
140-4G33/20-105XNGY-S |
33 |
12.7 |
43 |
2000 |
2500 |
36.2 |
2.6 |
22.9 |
NAS4E17/31XS |
|
190-4G60/17-140XNGY |
60 |
19.2 |
56 |
1700 |
2600 |
58.3 |
3.1 |
30 |
NAS4G25/45XS |
|
190-4G75/17-160XNGY |
75 |
23.3 |
72 |
1700 |
2600 |
70.1 |
3.2 |
34 |
NAS4G32/58XS |
|
190-4G88/17-200XNGY |
88 |
28.3 |
70 |
1700 |
2600 |
93.6 |
3.1 |
41 |
NAS4G37/67XS |
|
190-4G115/17-240XNGY |
115 |
35.9 |
110 |
1700 |
2600 |
105.4 |
3.2 |
44 |
NAS4G45/81X |
|
190-4G140/17-320XNGY |
140 |
40.8 |
142 |
1700 |
2600 |
128.8 |
3.4 |
50 |
NAS4G60/108X |
|
190-4G165/15-360XNGY |
165 |
43.7 |
145.3 |
1500 |
2200 |
152.3 |
3.8 |
57 |
NAS4G60/108X |
|
190-4G185/15-400XNGY |
185 |
53.4 |
136.1 |
1500 |
2200 |
164.6 |
3.5 |
61 |
NAS4G75/135X |
|
190-4G220/15-500XNGY |
220 |
60.9 |
198 |
1500 |
2200 |
199.3 |
3.6 |
70 |
NAS4G90/162X |
|
190-4G58/20-140XNGY |
58 |
22.1 |
48 |
2000 |
2600 |
58.3 |
2.6 |
30 |
NAS4G25/45XS |
|
190-4G72/20-160XNGY |
72 |
27.5 |
67 |
2000 |
2600 |
70.1 |
2.6 |
34 |
NAS4G32/58XS |
|
190-4G86/20-200XNGY |
86 |
33 |
85 |
2000 |
2600 |
93.6 |
2.6 |
41 |
NAS4G37/67XS |
|
190-4G110/20-240XNGY |
110 |
42.2 |
96 |
2000 |
2600 |
105.4 |
2.6 |
44 |
NAS4G45/81X |
|
190-4G138/20-320XNGY |
138 |
53.4 |
132 |
2000 |
2600 |
128.8 |
2.6 |
50 |
NAS4G60/108X |
|
190-4G160/20-360XNGY |
160 |
61.8 |
148 |
2000 |
2600 |
152.3 |
2.6 |
57 |
NAS4G75/135X |
|
190-4G180/20-400XNGY |
180 |
71.4 |
170 |
2000 |
2600 |
164.6 |
2.5 |
61 |
NAS4G75/135X |
|
190-4G215/20-500XNGY |
215 |
83.5 |
195 |
2000 |
2600 |
199.3 |
2.6 |
70 |
NAS4G90/162X |
|
230/260-4G240/15-520XNGY |
240 |
74.8 |
172 |
1500 |
2200 |
299.4 |
3.2 |
82 |
NAS4G90/162X |
|
230/260-4G265/15-560XNGY |
265 |
80.9 |
188 |
1500 |
2200 |
328.1 |
3.3 |
88 |
NAS4G90/162X |
|
230/260-4G300/15-660XNGY |
300 |
90.4 |
209.9 |
1500 |
2200 |
366.7 |
3.3 |
95 |
NAS4G110/198X |
|
260-4G360/15-800XNGY |
360 |
111 |
252 |
1500 |
2200 |
434 |
3.2 |
108 |
NAS4G110/198X |
|
260-4G420/15-900XNGY |
420 |
126.3 |
293.8 |
1500 |
2200 |
501.3 |
3.3 |
122 |
NAS4G150/270X |
|
260-4G480/15-1000XNGY |
480 |
137.7 |
320 |
1500 |
2200 |
564.6 |
3.5 |
136 |
NAS4G150/270X |
|
260-4G520/15-1100XNGY |
520 |
159.2 |
380 |
1500 |
2200 |
631.5 |
3.3 |
150 |
NAS4G180/270X |
|
260-4G570/15-1200XNGY |
570 |
169.2 |
420 |
1500 |
2200 |
692.8 |
3.4 |
161 |
NAS4G180/270X |
|
230/260-4G230/20-520XNGY |
230 |
92.9 |
223 |
2000 |
2600 |
299.4 |
2.5 |
82 |
NAS4G110/198X |
|
230/260-4G260/20-560XNGY |
260 |
105.9 |
250 |
2000 |
2600 |
328.1 |
2.5 |
88 |
NAS4G110/198X |
|
230/260-4G290/20-660XNGY |
290 |
114.1 |
270 |
2000 |
2600 |
366.7 |
2.5 |
95 |
NAS4G150/270X |
|
260-4G350/20-800XNGY |
350 |
133.9 |
316 |
2000 |
2600 |
434 |
2.61 |
108 |
NAS4G150/270X |
|
260-4G408/20-900XNGY |
408 |
160.9 |
377 |
2000 |
2600 |
501.3 |
2.54 |
123 |
NAS4G180/270X |
|
260-4G466/20-1000XNGY |
466 |
178.7 |
425 |
2000 |
2600 |
564.6 |
2.61 |
136 |
NAS4G180/270X |
|
260-4G505/20-1100XNGY |
505 |
193.8 |
472 |
2000 |
2600 |
631.5 |
2.61 |
150 |
NAS4G210/480X |
|
260-4G550/20-1200XNGY |
550 |
217.2 |
540 |
2000 |
2600 |
692.8 |
2.53 |
161 |
NAS4G210/480X |
140機座G系列電機安裝尺寸圖：
190/230/260 機座G系列電機外形圖：
190/230/260 機座G系列電機安裝尺寸圖：
|
公差尺寸 |
電機類型 |
D1(mm) |
D2(mm) |
b(mm) |
|
140 |
+0.015 +0.002 |
+0.014 -0.011 |
0 -0.036 |
|
|
190 |
+0.018 +0.002 |
0 -0.046 |
0 -0.036 |
|
|
230/260 |
+0.018 +0.002 |
0 -0.046 |
0 -0.043 |
電機外形尺寸數據表：
|
電機型號 |
D1 |
L1 |
b |
h |
D2 |
L2 |
D3 |
S |
L3 |
G1 |
G2 |
G3 |
G4 |
G5 |
G6 |
L4 |
L5 |
L6 |
L7 |
M |
|
140-4G20/17-54XNGY-S |
Φ24 |
50 |
8 |
7 |
Φ130 |
3.5 |
Φ165 |
Φ11 |
238.5 |
214.1 |
27 |
140 |
140 |
113 |
/ |
40 |
5 |
/ |
/ |
/ |
|
140-4G18/20-54XNGY-S |
||||||||||||||||||||
|
140-4G26/17-75XNGY-S |
278.5 |
|||||||||||||||||||
|
140-4G24/20-75XNGY-S |
||||||||||||||||||||
|
140-4G36/17-105XNGY-S |
333.5 |
|||||||||||||||||||
|
140-4G33/20-105XNGY-S |
||||||||||||||||||||
|
190-4G60/17-140XNGY |
Φ42 |
88 |
12 |
8 |
Φ180 |
5 |
Φ215 |
Φ15 |
373 |
286.5 |
45 |
212 |
212 |
160 |
117.5 |
70 |
6 |
29 |
164 |
M8 |
|
190-4G58/20-140XNGY |
373 |
164 |
||||||||||||||||||
|
190-4G75/17-160XNGY |
391 |
182 |
||||||||||||||||||
|
190-4G72/20-160XNGY |
391 |
182 |
||||||||||||||||||
|
190-4G88/17-200XNGY |
409 |
200 |
||||||||||||||||||
|
190-4G86/20-200XNGY |
409 |
200 |
||||||||||||||||||
|
190-4G115/17-240XNGY |
445 |
236 |
||||||||||||||||||
|
190-4G110/20-240XNGY |
445 |
236 |
||||||||||||||||||
|
190-4G140/17-320XNGY |
481 |
272 |
||||||||||||||||||
|
190-4G138/20-320XNGY |
481 |
272 |
||||||||||||||||||
|
190-4G165/15-360XNGY |
517 |
308 |
||||||||||||||||||
|
190-4G160/20-360XNGY |
517 |
308 |
||||||||||||||||||
|
190-4G185/15-400XNGY |
535 |
326 |
||||||||||||||||||
|
190-4G180/20-400XNGY |
535 |
326 |
||||||||||||||||||
|
190-4G220/15-500XNGY |
589 |
380 |
||||||||||||||||||
|
190-4G215/20-500XNGY |
589 |
380 |
190/230/260 機座G系列電機外形圖：
190/230/260 機座G系列電機底腳安裝尺寸圖：
