NAS G系列交流伺服驅動系統是星辰科技為伺服節能型注塑機專門開發的的高性能交流伺服系統，該系列產品具有響應快速、控制精確等特點，能夠完美地實現伺服系統對注塑機油泵的控制。

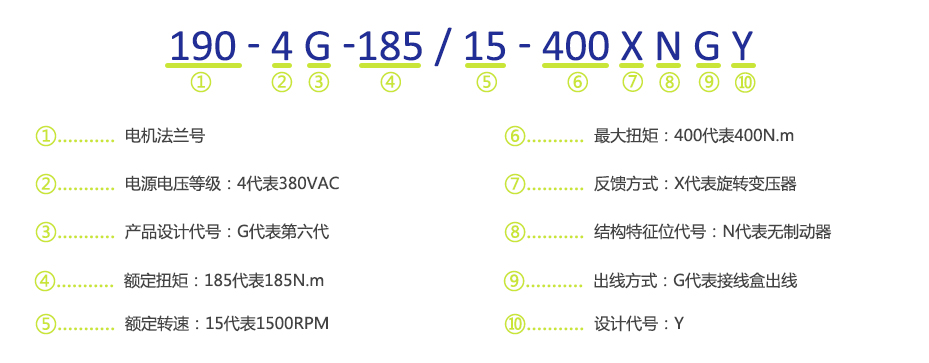

1.命名規則
2.技術規范
絕緣耐壓等級
F級
保護型式
IP54，強制風冷
振動等級
振動加速度5g （即:49m/s2）
安裝方式
法蘭安裝
使用環境溫度
-10℃～+40℃
保存環境溫度
-20℃～+60℃
濕熱
95%RH以下(不凝露)
標準高度
海拔1000m以下（1000m以上請降額使用）
反饋元件
旋轉變壓器
3.產品參數
電機型號
額定扭矩N.m
額定電流
A
最大電流
A
額定轉速
rpm
最高轉速
rpm
轉動慣量
kg.cm2
力矩常數N.m/A
電機
重量
kg
推薦配套
驅動器型號
140-4G20/17-54XNGY-S
20
6.4
19.5
1700
2500
17.2
3.2
14.1
NAS4E13/23XS
140-4G26/17-75XNGY-S
26
8.2
26.2
1700
2500
25.2
3.2
17.8
NAS4E13/23XS
140-4G36/17-105XNGY-S
36
11.5
36.2
1700
2500
36.2
3.1
22.9
NAS4E17/31XS
140-4G18/20-54XNGY-S
18
6.9
23.6
2000
2500
17.2
2.6
14.1
NAS4E13/23XS
140-4G24/20-75XNGY-S
24
9.5
31.2
2000
2500
25.2
2.5
17.8
NAS4E17/31XS
140-4G33/20-105XNGY-S
33
12.7
43
2000
2500
36.2
2.6
22.9
NAS4E17/31XS
190-4G60/17-140XNGY
60
19.2
56
1700
2600
58.3
3.1
30
NAS4G25/45XS
190-4G75/17-160XNGY
75
23.3
72
1700
2600
70.1
3.2
34
NAS4G32/58XS
190-4G88/17-200XNGY
88
28.3
70
1700
2600
93.6
3.1
41
NAS4G37/67XS
190-4G115/17-240XNGY
115
35.9
110
1700
2600
105.4
3.2
44
NAS4G45/81X
190-4G140/17-320XNGY
140
40.8
142
1700
2600
128.8
3.4
50
NAS4G60/108X
190-4G165/15-360XNGY
165
43.7
145.3
1500
2200
152.3
3.8
57
NAS4G60/108X
190-4G185/15-400XNGY
185
53.4
136.1
1500
2200
164.6
3.5
61
NAS4G75/135X
190-4G220/15-500XNGY
220
60.9
198
1500
2200
199.3
3.6
70
NAS4G90/162X
190-4G58/20-140XNGY
58
22.1
48
2000
2600
58.3
2.6
30
NAS4G25/45XS
190-4G72/20-160XNGY
72
27.5
67
2000
2600
70.1
2.6
34
NAS4G32/58XS
190-4G86/20-200XNGY
86
33
85
2000
2600
93.6
2.6
41
NAS4G37/67XS
190-4G110/20-240XNGY
110
42.2
96
2000
2600
105.4
2.6
44
NAS4G45/81X
190-4G138/20-320XNGY
138
53.4
132
2000
2600
128.8
2.6
50
NAS4G60/108X
190-4G160/20-360XNGY
160
61.8
148
2000
2600
152.3
2.6
57
NAS4G75/135X
190-4G180/20-400XNGY
180
71.4
170
2000
2600
164.6
2.5
61
NAS4G75/135X
190-4G215/20-500XNGY
215
83.5
195
2000
2600
199.3
2.6
70
NAS4G90/162X
230/260-4G240/15-520XNGY
240
74.8
172
1500
2200
299.4
3.2
82
NAS4G90/162X
230/260-4G265/15-560XNGY
265
80.9
188
1500
2200
328.1
3.3
88
NAS4G90/162X
230/260-4G300/15-660XNGY
300
90.4
209.9
1500
2200
366.7
3.3
95
NAS4G110/198X
260-4G360/15-800XNGY
360
111
252
1500
2200
434
3.2
108
NAS4G110/198X
260-4G420/15-900XNGY
420
126.3
293.8
1500
2200
501.3
3.3
122
NAS4G150/270X
260-4G480/15-1000XNGY
480
137.7
320
1500
2200
564.6
3.5
136
NAS4G150/270X
260-4G520/15-1100XNGY
520
159.2
380
1500
2200
631.5
3.3
150
NAS4G180/270X
260-4G570/15-1200XNGY
570
169.2
420
1500
2200
692.8
3.4
161
NAS4G180/270X
230/260-4G230/20-520XNGY
230
92.9
223
2000
2600
299.4
2.5
82
NAS4G110/198X
230/260-4G260/20-560XNGY
260
105.9
250
2000
2600
328.1
2.5
88
NAS4G110/198X
230/260-4G290/20-660XNGY
290
114.1
270
2000
2600
366.7
2.5
95
NAS4G150/270X
260-4G350/20-800XNGY
350
133.9
316
2000
2600
434
2.61
108
NAS4G150/270X
260-4G408/20-900XNGY
408
160.9
377
2000
2600
501.3
2.54
123
NAS4G180/270X
260-4G466/20-1000XNGY
466
178.7
425
2000
2600
564.6
2.61
136
NAS4G180/270X
260-4G505/20-1100XNGY
505
193.8
472
2000
2600
631.5
2.61
150
NAS4G210/480X
260-4G550/20-1200XNGY
550
217.2
540
2000
2600
692.8
2.53
161
NAS4G210/480X

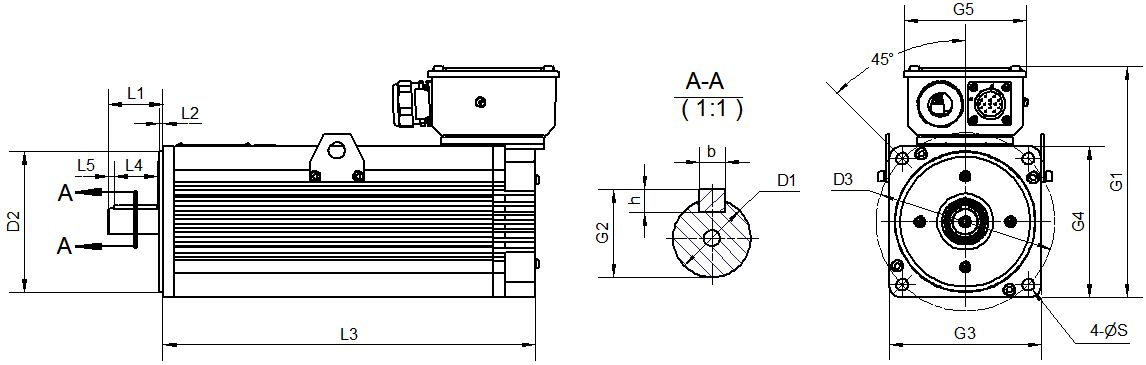

140機座G系列電機安裝尺寸圖：

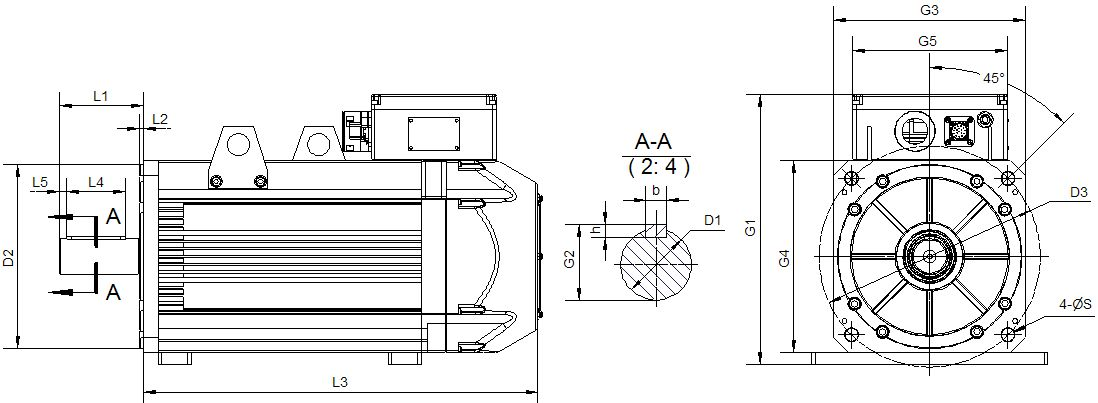

190/230/260 機座G系列電機外形圖：
190/230/260 機座G系列電機安裝尺寸圖：
|
公差尺寸 |
電機類型 |
D1(mm) |
D2(mm) |
b(mm) |
|
140 |
+0.015 +0.002 |
+0.014 -0.011 |
0 -0.036 |
|
|
190 |
+0.018 +0.002 |
0 -0.046 |
0 -0.036 |
|
|
230/260 |
+0.018 +0.002 |
0 -0.046 |
0 -0.043 |
電機外形尺寸數據表：
|
電機型號 |
D1 |
L1 |
b |
h |
D2 |
L2 |
D3 |
S |
L3 |
G1 |
G2 |
G3 |
G4 |
G5 |
G6 |
L4 |
L5 |
L6 |
L7 |
M |
|
140-4G20/17-54XNGY-S |
Φ24 |
50 |
8 |
7 |
Φ130 |
3.5 |
Φ165 |
Φ11 |
238.5 |
214.1 |
27 |
140 |
140 |
113 |
/ |
40 |
5 |
/ |
/ |
/ |
|
140-4G18/20-54XNGY-S |
||||||||||||||||||||
|
140-4G26/17-75XNGY-S |
278.5 |
|||||||||||||||||||
|
140-4G24/20-75XNGY-S |
||||||||||||||||||||
|
140-4G36/17-105XNGY-S |
333.5 |
|||||||||||||||||||
|
140-4G33/20-105XNGY-S |
||||||||||||||||||||
|
190-4G60/17-140XNGY |
Φ42 |
88 |
12 |
8 |
Φ180 |
5 |
Φ215 |
Φ15 |
373 |
286.5 |
45 |
212 |
212 |
160 |
117.5 |
70 |
6 |
29 |
164 |
M8 |
|
190-4G58/20-140XNGY |
373 |
164 |
||||||||||||||||||
|
190-4G75/17-160XNGY |
391 |
182 |
||||||||||||||||||
|
190-4G72/20-160XNGY |
391 |
182 |
||||||||||||||||||
|
190-4G88/17-200XNGY |
409 |
200 |
||||||||||||||||||
|
190-4G86/20-200XNGY |
409 |
200 |
||||||||||||||||||
|
190-4G115/17-240XNGY |
445 |
236 |
||||||||||||||||||
|
190-4G110/20-240XNGY |
445 |
236 |
||||||||||||||||||
|
190-4G140/17-320XNGY |
481 |
272 |
||||||||||||||||||
|
190-4G138/20-320XNGY |
481 |
272 |
||||||||||||||||||
|
190-4G165/15-360XNGY |
517 |
308 |
||||||||||||||||||
|
190-4G160/20-360XNGY |
517 |
308 |
||||||||||||||||||
|
190-4G185/15-400XNGY |
535 |
326 |
||||||||||||||||||
|
190-4G180/20-400XNGY |
535 |
326 |
||||||||||||||||||
|
190-4G220/15-500XNGY |
589 |
380 |
||||||||||||||||||
|
190-4G215/20-500XNGY |
589 |
380 |

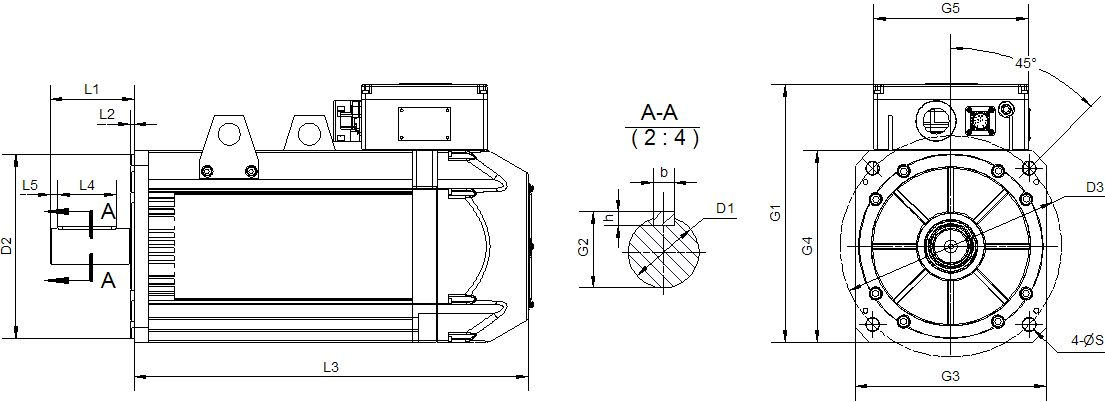

190/230/260 機座G系列電機外形圖：

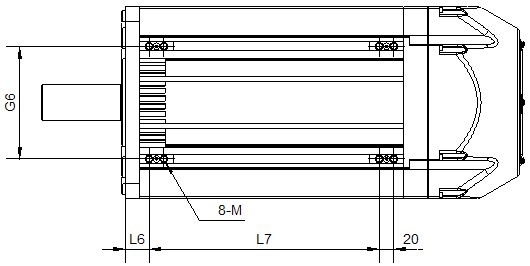

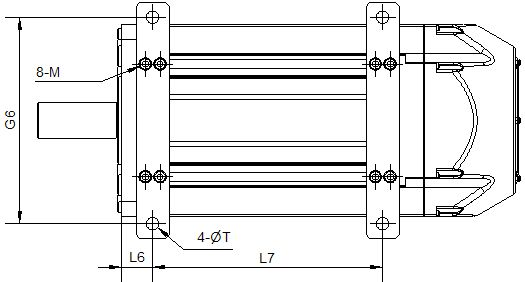

190/230/260 機座G系列電機底腳安裝尺寸圖：
